DTA Node
)
)
)
)

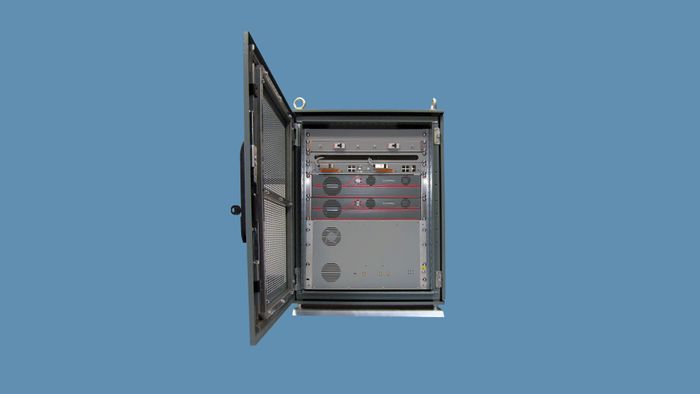

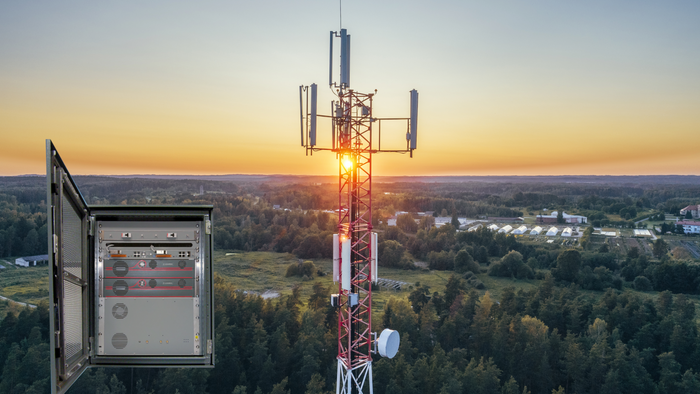

| The DTA Node is a state-of-the-art TETRA radio base station designed using a modular approach and the latest technologies. The DTA carrier is the building block of the DTA Node: the DTA carrier implements one radio channel and, together with other components such as combiners, branching units, filters, interface modules, etc. allows implementing 2 or 4 channels DTA Node radio base stations. The DTA carrier installed in a standard 19” rack, occupying two rack units and accepting a standard 48 VDC power supply. DTA Carrier is conceived for operating in the switching range 380-470 MHz. The DTA Node is available in several frequencies bands (380-400 MHz, 410-430 MHz, 450-470 MHz) and with a choice of hybrid or cavity combiners. The DTA node also includes Cyber Security features such as SNMP agent and integrated firewall. Product brochure: DTA-Node+RadioBaseStation+LQ+(mm09067).pdf (leonardo.com) |
)
)
)
)
